Description Woven Press Filter Belts are multi-functional filter belts with various textures and a wide range of air permeability, which can meet a wide range of dehydration, filtration, drying and other requirements. The sludge Dewatering belt is a kind of press filt……

Description

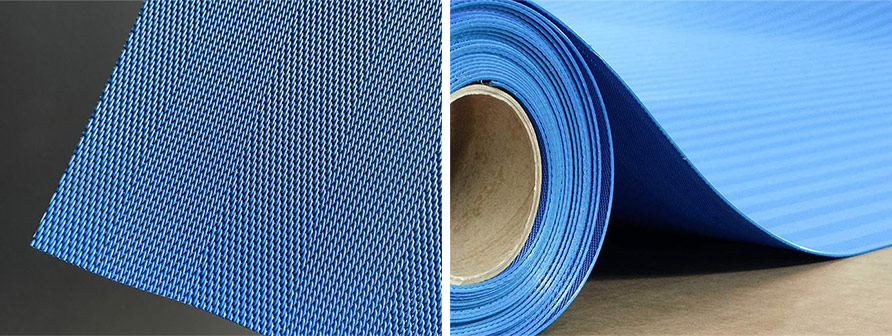

Woven Press Filter Belts are multi-functional filter belts with various textures and a wide range of air permeability, which can meet a wide range of dehydration, filtration, drying and other requirements.

The sludge Dewatering belt is a kind of press filter belt. It is designed for solid-liquid separation, especially sludge dehydration in the sewage treatment industry.

The combination of high-quality polyester or nylon monofilament, weave type as well as the correct opening and permeability makes our process belts particularly effective and robust and guarantees resistance to abrasion and chemical influences. Because they are manufactured on heavy-duty looms and additionally reinforced through a thermal fixing process, press filter belts also boast a particularly high level of mechanical stability.

It is suitable for press belt filters and various vacuum belt filters. MACROKUN Screen press filter belts are ideal for belt presses, vacuum belt filters, and sludge dryers.

The press filter belt operates as a key part of the belt filter press as it determines the actual output and quality of the filtration process. Our fabrics are made with reasonable weave structures and special yarns for different applications to achieve rapid draining and good filter cake release.

Use special stainless-steel seams, compared to conventional hook seams, blades and sludge distributors can glide over the seam area far more easily, and the special seam is stronger, more durable and possesses better running properties. Furthermore, the risk of damage to the seams is reduced to a minimum, the seam area is closed more tightly and product penetration is reduced.

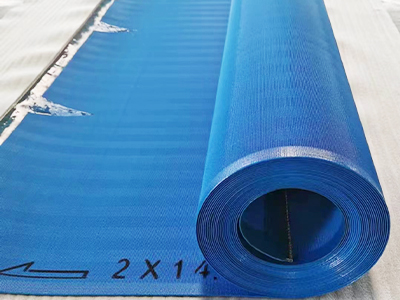

Robust glued edges

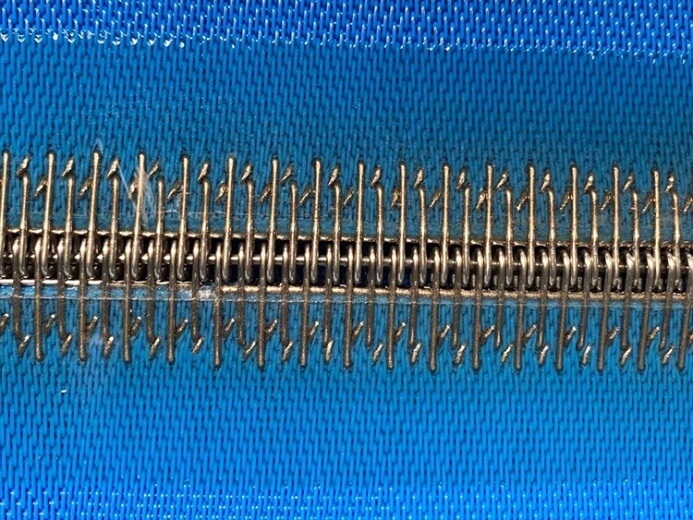

Stainless steel clipper seams

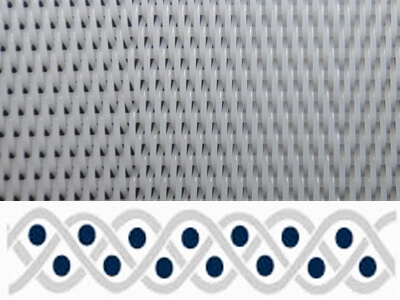

Our range of polyester sludge dewatering belts is available in various woven patterns, such as three-shed stain woven, four-shed level woven, four-shed stain woven as shown in the following pictures.

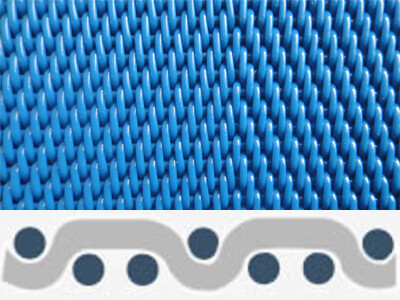

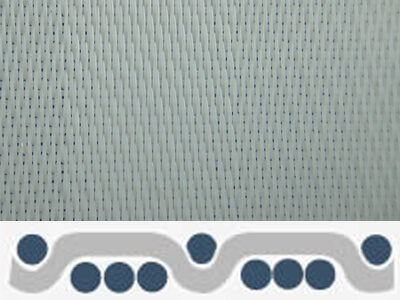

Three-shed stain woven pattern Four-shed stain woven pattern

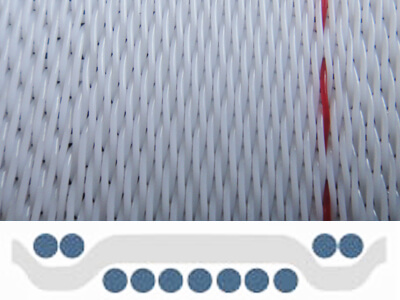

2/7 stain woven pattern Three-shed double-layer pattern

What do you need to tell us when ordering Woven Press Filter Belts for your belt filter press?

● The length and width of the filter belt.

● Confirm the pH of the filtrate.

● Operating temperature.

● Connection and edge processing types.

● The breathability of the filter belt.

★ Confirm the slurry consistency and solid particle size in the filtrate.

★ Belt filter press type, strength, processing capacity.

★ Thickness, the weight of the filter cloth.

(Parts with ★ are optional)

Feature

● The special twill weave ensures precise filtration results, and a smooth surface makes filter cake comes off easily, the high-quality polyester and nylon monofilament yarn make our woven mesh filter belt fabrics being chemically-resistant, good strength could withstand the greatest mechanical stresses and long service life.

● After FDA certification, it can be safely used in the food processing industry.

● A wide range of custom sizes can be customized within 8 meters wide and 200 meters long according to requirements.

● When using heavy-duty looms, heat setting treatment should be performed to minimize the risk of deformation and wrinkles.

● Remarkable acid and alkali resistance, abrasion resistance and corrosion resistance, and longer service life can deal with dirt with a pH value from 1 to 14.

● Temperature stability up to 200°C, can be used at -20°C to 200°C working temperature.

● Quick and easy to clean

Application

● Municipal sludge, industrial sludge, biologic sludge, dewatering, and drying belt filter cloth for belt filter press.

The synthetic woven mesh filter belts are most widely used in dewatering and drying municipal sludge, industrial slurries, and biologic sludge, and aid the mine tailing dewatering process for their capacity of continuous working and high efficiency.

● Fruit and vegetable juice pressing and dewatering

MACROKUN Screen FDA-compliant polyester mesh press filter belt is suitable for juice extracting and pressing from fruit and vegetables on the belt press filters, especially for apple, pear, thorn pear, ginger and other berries, and nuts.

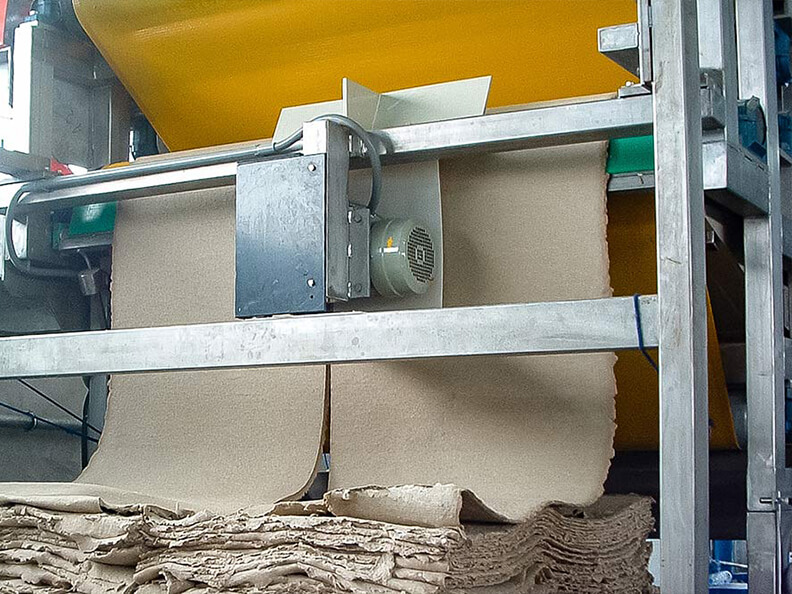

● Pulp and paper wastes

Dewatering of pulp and paper mill sludge and primary sludge

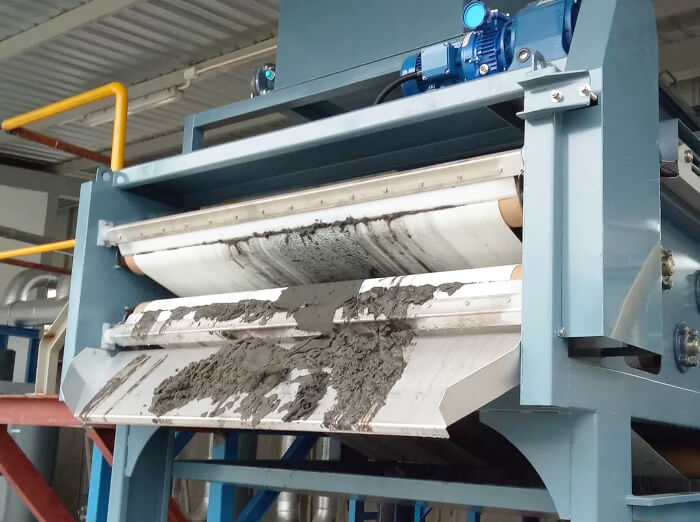

Press Filter Belts for Sludge Dewatering

Press Filter Belts for Belt Press Juicer Extractor



Specifications

Model Filament diameter
(mm)
Density (wire/cm) Strength
(N/cm)
Weight
(Kg/m2)
Thickness
(mm)
Air permeability
(m3/m2h)
CFM
(127/pa)
warp weft warp weft surface joint
31505 0.4 0.5 33 9 1600 900 0.8 1.3 2976 186
26508 0.5 0.5 28 18.5 1600 900 1.2 1.5 2050 128
2470 0.5 0.7 24 9 1600 650 1.23 1.9 7520 470
22903 0.5 0.9 23 5.5 1600 900 1.4 1.9 8480 530
27708 0.5 0.7 28 8.5 1600 900 1.53 2 4896 306
26908 0.5 0.9 26.2 6.2 1600 900 1.49 2.15 6080 380
24908 0.5 0.9 24.8 7.1 1600 900 1.48 2.1 7360 460
24808 0.5 0.8 24.8 8 1600 900 1.4 2 6880 430
16903 0.7 0.9 16.3 5 1600 900 1.5 2.1 7520 470
16903 blue 0.7 0.9 16.3 5.8/6 1600 900 1.7 2.1 5550/3968 347/248
15905 0.9 0.9 15.3 5 1600 900 2.1 2.77 7840 490
151105 0.9 1.1 15.3 6.3 1600 900 2.45 2.85 9280 580
151105PA/PET
mixed yarn
0.9 1.1 15.3 6.3 1600 900 2.45 2.85 9280 580
12904 0.9 0.9 12.3 9.5 1600 900 2.2 3.5 9600 600
