Description Polyester Spiral Press Filter Belts are made with spiral dryer fabrics with extra filler yarns inserted in the spiral loops to reduce the air permeability and less material loss on the surface of the fabric. Polyester Spiral Press filter belts are usually ……

Description

Polyester Spiral Press Filter Belts are made with spiral dryer fabrics with extra filler yarns inserted in the spiral loops to reduce the air permeability and less material loss on the surface of the fabric.

Polyester Spiral Press filter belts are usually made of abrasive resistant polyester.

Polyester Spiral Press Filter Belt is also a monofilament polyester fabric but not like a woven fabric, instead this is a polyester fabric with spiral twisted wires where pins hold the spirals together like a chain.

A Spiral filter belt does not need extra joint seam like woven filter belts, because spiral coils at both ends of the spiral filter belt can be connected together. The spiral seam on the spiral filter belt is stronger and the lifetime of this connection is in some applications more durable that clipper seam AISI304/316, which is used for woven filter belts. Therefore spiral filter belt could be a solution for applications, where woven filter belts with a clipper seam prematurely fail.

Spiral Filter Belt edges are usually reinforced with glues that are both mechanically strong and very flexible. High-quality glue not only increases the mechanical strength of the belt edge, but also firmly holds the weft in the fabric.

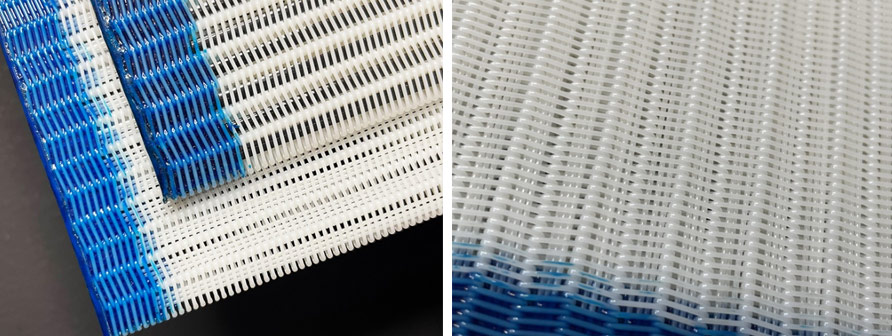

Fold back yarns glued edge

Cut glued edges

For years we have been manufacturing filter belts made of synthetic fabrics for a wide range of pressure belt filters of different sizes and designs, applicable for dewatering or solid-liquid separation in industries such as mining, chemical, food or wastewater treatment.

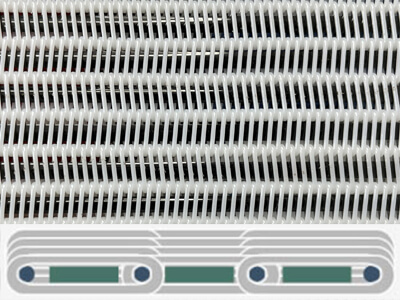

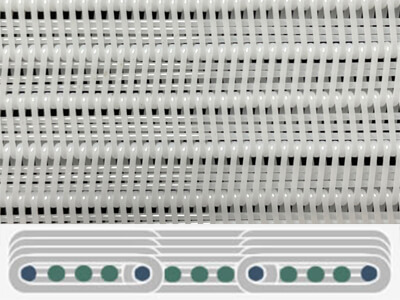

Spiral Press Filter Belt with Flat Inserting Bars Spiral Press Filter Belt with Round Inserting Bars

Feature

● The Polyester Spiral Press Filter Belts are produced with high cross-sectional stability and long service life.

● The Polyester Spiral Press Filter Belts width can be from 20 to 500 cm, depending on the filtration equipment.

● Due to the special structure of the spiral ring, there can be no seams at the filter belt connection

● Robust glued edges

● FDA Certification

Application

Spiral filter belts with filling yarns are mainly used as filter cloth, drying media or conveyor belts for solid-liquid separation in the belt press filter.

We supply a wide variety of belts for industrial filtration or for environmental applications, choosing the material according to the characteristics of the product to be filtered, the work pressure, temperature, etc. that allows achieving a perfect solid-liquid separation. The type of material for a belt can vary depending on the customer’s specifications and applications.

● Solid-liquid separation & drying

● Effluent treatment (wastewater, sewage, sludge de-watering)

● Pharmaceutical & chemical industry

● Mining & mineral industry

● Pulp & paper industry

● Food industry

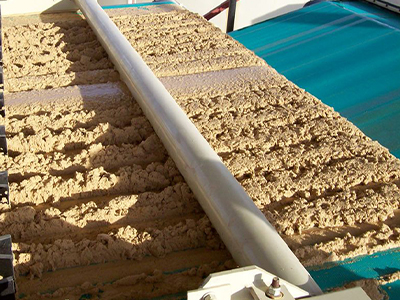

Spiral filter belt for sludge drwatering

Spiral filter belt for sand washing



Specifications

Type Spiral loop width
(mm)
Filament diameter
(mm)
Strength
(N/cm)
Weight
(Kg/m2)
Thickness
(mm)
Air permeability
(m3/m2h)
CFM
(127/pa)
Spiral ring monofilament Connection Wire filler material monofilament
Small loop 5080A1 5.2 0.5 0.8 0.60*3 1800 1.5 2.1 4480 280
Medium loop 6890A1 8 0.68 0.9 0.80*4 2000 2 2.45 6080 380
Medium loop 6890B1 7.15 0.68 0.9 0.90*3 2000 1.9 2.45 5760 360
Medium loop 6890B2 7.15 0.68 0.9 0.80*3 2000 1.85 2.45 7750 484
Medium loop 6890B3 7.15 0.68 0.9 Flat Wire 2.1*0.80 2000 1.8 2.45 9000 563
Medium loop 6890B4 7.15 0.68 0.9 Flat Wire 2.1*0.88 2000 1.85 2.45 8000 500
Medium loop 6890B5 7.15 0.68 0.9 Conductive carbon wire 2000 1.6 2.45 10000 625
Large loop 9090A1 8 0.9 0.9 0.90*3 2300 2.3 3.03 7500 468
Large loop 90110A1 10 0.9 1.1 1.0*4 2000 2.4 3.15 6240 390
Alkali resistance PA90110A2 10 0.9 1.1 1.2*3 2000 2.25 3.15 6240 390
Large loop 10090A1 8 1 0.9 1.0*3 2000 2.5 3.6 5000 315
Large loop 120130A1 1.2 1.2 1.3 1.2*3 2600 2.85 4.3 7500 468
