Paper Machine Clothing Single Layer BOM Press Felts - Certified Mesh Belt Manufacturer, Excellent Product, Perfect Service, Competitive Price

Description Single Layer BOM Felt is made up of single base layer mesh fabric and fiber layer. One structure of the single-layer BOM press felt The base layer is woven from synthetic mono-filament or multi-filament.  The fiber layer consists of the various lap of fib……

Description

Single Layer BOM Felt is made up of single base layer mesh fabric and fiber layer.

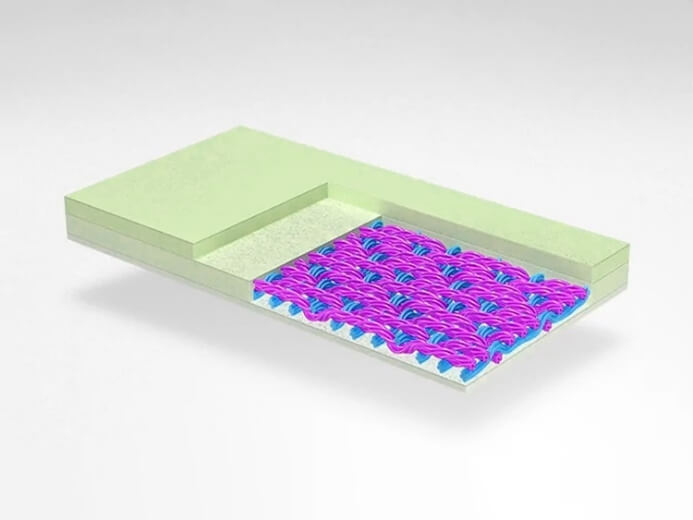

One structure of the single-layer BOM press felt

The base layer is woven from synthetic mono-filament or multi-filament.  The fiber layer consists of the various lap of fiber web and different diameters of fiber for better drainage and fiber support index.

The structure is designed base on different paper machines, press types and different papers.

It has good quality properties such as less elongation, easy to wash, no-mark on paper, long-life performance and can be used in various paper machines to produce different kinds of paper.



Classification of Single Layer BOM Felt

● Single Layer Forming BOM Felt

● Single Layer Press BOM Felt

● Single Layer Top BOM Felt

● 1.5 Layer BOM Pulp / Paper Felt

Feature

● Single-layer base fabric

● The most basic design

● Less elongation

● Easy to clean

● No-mark on the paper surface

● Long-life performance

Application

Paper machine: cylinder, super forming, fourdrinier, inclined wire machine, nip wire machine for forming section felt, press felt.

Vehicle speed: ≤800m/min

Paper Grade: ≥8g/m2

NIP: ≤80kN/m

Specifications

● GSM: 700~1200g/m2

● Felt GSM Tolerance:≤±4

● Air Permeability:30~120CFM

● Tensile Strength:≥2000N/5cm

● Elongation Percentage:≤1%

● Width Variation:≤±2cm

Module GSM Structure Application
17401 900~1100 single layer mesh writing & printing papers, paperboards, high-grade paperboards, tissue papers
17402 900~1100 single layer mesh writing & printing papers, paperboards, high-grade paperboards, tissue papers
17421 900~1100 single layer mesh writing & printing papers, paperboards, high-grade paperboards, tissue papers
17422 900~1100 single layer mesh writing & printing papers, paperboards, high-grade paperboards, tissue papers
47401 700~800 single layer mesh sanitary papers, tissue papers
47403 700~1100 single layer mesh writing & printing papers, newspapers, technical papers, packaging papers
47404 680~850 single layer mesh corrugating, kraft papers, packaging papers
47406 700~900 single layer mesh corrugating, kraft papers, packaging papers
47409 800~1000 single layer mesh kraft papers, white paperboards
47410 800~1000 single layer mesh kraft papers, white paperboards
47420 800~1000 single layer mesh high–grade writing & printing papers, technical papers, tissue papers
47421 800~1000 single layer mesh high–grade writing & printing papers, technical papers, tissue papers
47423 800~1000 single layer mesh high–grade writing & printing papers, technical papers, tissue papers
47429 800~1000 single layer mesh high-grade packaging papers, kraft papers, paper boards
